# How to create new levels

## Level Editor

How to create new levels, check:\
[Video Tutorial](https://www.youtube.com/watch?v=zfOdrD1pF08\&feature=youtu.be)\
[Video Tutorial (water)](https://www.youtube.com/watch?v=koxce2_4RDY\&feature=youtu.be)

1 - Go to “Jewelry Match 3 Kit” menu. Choose the “Level Editor”

<figure><img src="https://static.wixstatic.com/media/d59ada_e97f91e94af6487393359deb78fc0640~mv2.png/v1/fill/w_600,h_93,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/1_PNG.png" alt=""><figcaption></figcaption></figure>

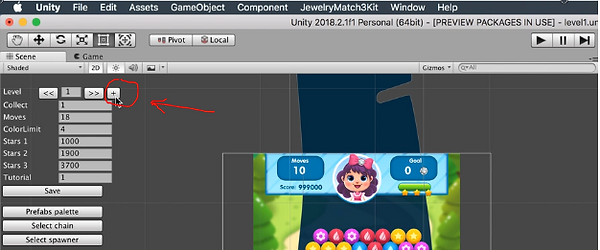

2 - Press “+” button to create a new level

<figure><img src="https://static.wixstatic.com/media/d59ada_c96e8772a4c54029835583772f68b478~mv2.png/v1/fill/w_600,h_250,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/2_PNG.png" alt=""><figcaption></figcaption></figure>

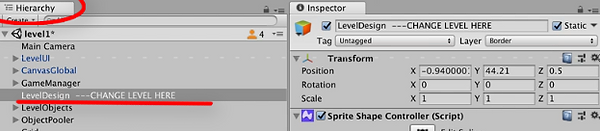

3 - Go to Hierarchy → Level Design → CHANGE LEVEL HERE

<figure><img src="https://static.wixstatic.com/media/d59ada_691cde2ab9e94e9fa729f85fd13afad0~mv2.png/v1/fill/w_600,h_131,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/3_PNG.png" alt=""><figcaption></figcaption></figure>

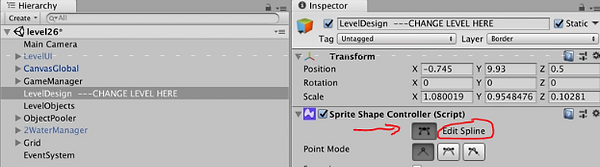

4 - Use “Edit Spline” to edit the shape of level

<figure><img src="https://static.wixstatic.com/media/d59ada_16b772a389bf46beb6fc6bc0bbb59fc6~mv2.png/v1/fill/w_600,h_167,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/4_PNG.png" alt=""><figcaption></figcaption></figure>

5 - Click left mouse button to add new point (for more details look the [tutorial 1](https://www.youtube.com/watch?v=zfOdrD1pF08\&feature=youtu.be) and [tutorial 2)](https://www.youtube.com/watch?v=koxce2_4RDY\&feature=youtu.be)

<figure><img src="https://static.wixstatic.com/media/d59ada_09fedea248994b24aa515eda50dd006b~mv2.png/v1/fill/w_223,h_217,al_c,q_85,enc_auto/5_PNG.png" alt=""><figcaption></figcaption></figure>

Drag the point to the right place.\
Use SHIFT to drag one or more points

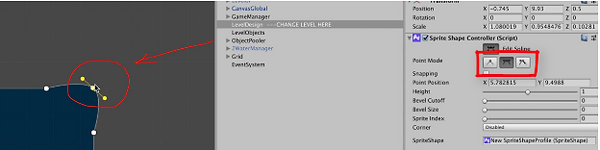

6 - Use “point mode” to edit the points

<figure><img src="https://static.wixstatic.com/media/d59ada_343ce08860e6410b8315947f9a73126c~mv2.png/v1/fill/w_600,h_150,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/6_PNG.png" alt=""><figcaption></figcaption></figure>

Drag to yellow point to change a shape

7 - Click to “Prefabs palette” to open the “Tile palette”

<figure><img src="https://static.wixstatic.com/media/d59ada_3fb36d909ecc47aeaa756165b67f662d~mv2.png/v1/fill/w_436,h_318,al_c,q_85,enc_auto/7_PNG.png" alt=""><figcaption></figcaption></figure>

8 - Jewel is a game target. Choose it in the “Tile Palette”. Use the brush to put it on the game field.

<figure><img src="https://static.wixstatic.com/media/d59ada_40d53f2fd3b140b885089e3a2b1b2872~mv2.png/v1/fill/w_361,h_233,al_c,q_85,enc_auto/8_PNG.png" alt=""><figcaption></figcaption></figure>

9 - You can use the shapes to do your level more interesting.

<figure><img src="https://static.wixstatic.com/media/d59ada_7bba10bccd144a33bbea1eeb3eb9212f~mv2.png/v1/fill/w_428,h_206,al_c,q_85,enc_auto/9_PNG.png" alt=""><figcaption></figcaption></figure>

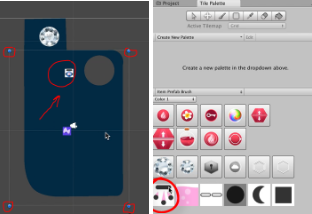

10 - Add “Item spawner”. Choose it and click on the game field. Place it on the right place.

<figure><img src="https://static.wixstatic.com/media/d59ada_15b28c0c90bb4e13bbc87cafa59253ac~mv2.png/v1/fill/w_312,h_214,al_c,q_85,enc_auto/10_PNG.png" alt=""><figcaption></figcaption></figure>

Use Rect Tool to edit.

<figure><img src="https://static.wixstatic.com/media/d59ada_704b794288e246fab4d5f8c3fc73aee0~mv2.png/v1/fill/w_220,h_72,al_c,q_85,enc_auto/11.png" alt=""><figcaption></figcaption></figure>

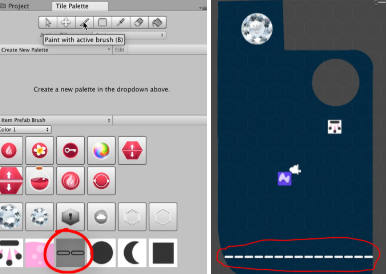

11 - Add the “Finish Line”

<figure><img src="https://static.wixstatic.com/media/d59ada_a0103035d0d14e0fa3011adcb031d624~mv2.png/v1/fill/w_387,h_274,al_c,q_85,enc_auto/12_PNG.png" alt=""><figcaption></figcaption></figure>

Place it on the right place.

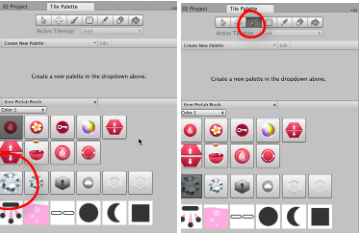

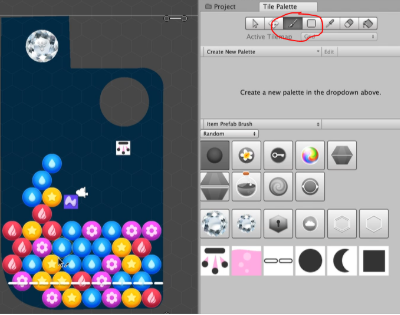

12 - Use brush box to add the balls on the level.

<figure><img src="https://static.wixstatic.com/media/d59ada_987d10b50727402e915fe4e869a36c54~mv2.png/v1/fill/w_400,h_315,al_c,q_85,enc_auto/13_PNG.png" alt=""><figcaption></figcaption></figure>

You can choose the random items. Don’t forget to set a Color Limit before this.

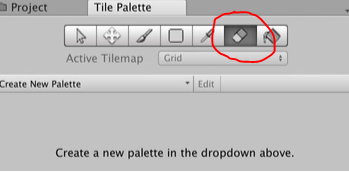

13 - Use eraser to clear some game items

<figure><img src="https://static.wixstatic.com/media/d59ada_5973c02261af494aafdfcd051d3a950a~mv2.png/v1/fill/w_349,h_173,al_c,q_85,enc_auto/15_PNG.png" alt=""><figcaption></figcaption></figure>

14 - Adjust the level setting and press save button

<figure><img src="https://static.wixstatic.com/media/d59ada_ebad7157ba7f471695e7ef6afa045122~mv2.png/v1/fill/w_98,h_143,al_c,q_85,enc_auto/16_PNG.png" alt=""><figcaption></figcaption></figure>

JEWEL ITEMS is a game goal. It will be counted automatically after saving.

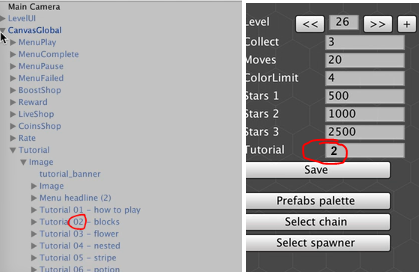

15 - If you want to add a game tutorial, go to Hierarchy → Canvas Global → Tutorial → Find number of the right tutorial, and type it here.

<figure><img src="https://static.wixstatic.com/media/d59ada_133f5a04b9224fe1b3575011cba9084e~mv2.png/v1/fill/w_419,h_272,al_c,q_85,enc_auto/18_PNG.png" alt=""><figcaption></figcaption></figure>

For example, you need a “block” tutorial. Type number 2.

16 - Selected chain and Selected spawner will help you to choose these items on the game field.

<figure><img src="https://static.wixstatic.com/media/d59ada_95ccd13eb35d44e681c5e3b01574970d~mv2.png/v1/fill/w_174,h_286,al_c,q_85,enc_auto/19_PNG.png" alt=""><figcaption></figcaption></figure>

17 - Don’t forget to save the setting and scene.

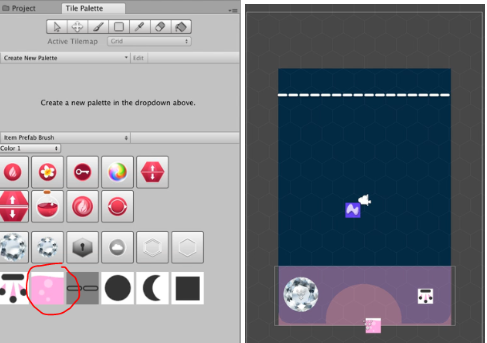

18 - If you want to add the water, click on a water icon in to the Tile Palette.

<figure><img src="https://static.wixstatic.com/media/d59ada_e0566c15c9fe4285876b4a6c07c989f9~mv2.png/v1/fill/w_487,h_343,al_c,q_85,enc_auto/20_PNG.png" alt=""><figcaption></figcaption></figure>

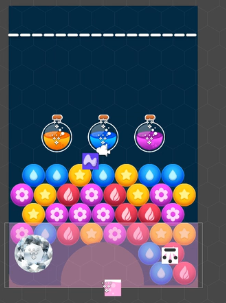

Place it in the right place. Don’t forget to add the potion on the level.

<figure><img src="https://static.wixstatic.com/media/d59ada_31cee159bc424628ac39449955dfbbb5~mv2.png/v1/fill/w_226,h_303,al_c,q_85,enc_auto/21_PNG.png" alt=""><figcaption></figcaption></figure>

19 - Press the save button.
